Madimack InverCHLOR pH Doser Automated Acid Dosing Upgrade Module Add-On


Price:
Sale price$288.00


Please Note: Images shown are for illustration purposes only and may not be an exact representation of the product. Due to manufacturing tolerances there may be a slight variation to any listed measurements.

Description

The Madimack InverCHLOR pH Doser is an automated acid dosing upgrade designed to work with the Madimack InverCHLOR Salt & Mineral Chlorinator system. It helps maintain stable pool water balance by dosing diluted hydrochloric pool acid through the system according to the dosage amount set on the InverCHLOR controller.

By automating the acid dosing process, this unit can help reduce the need for regular manual pH adjustment. Maintaining the correct pH level is important for swimmer comfort, effective sanitisation, and protecting pool surfaces and equipment from scaling or corrosion.

This is a practical upgrade for pool owners who already use, or are installing, an InverCHLOR chlorinator and want a more automated way to manage pH control.

Key Benefits

Automated Acid Dosing

Helps maintain pH balance by dosing diluted acid automatically while the InverCHLOR system operates.

Improved Water Balance

Stable pH helps chlorine work effectively and keeps pool water more comfortable for swimmers.

Equipment Protection

Correct pH control can help reduce the risk of scaling, staining, corrosion, and premature wear.

Made for InverCHLOR

Designed as an upgrade for the Madimack InverCHLOR chlorinator range.

Features

  • Automated pH dosing upgrade for Madimack InverCHLOR systems
  • Designed to dose diluted hydrochloric pool acid
  • Dosing amount is set through the InverCHLOR controller
  • Helps support correct pool water balance
  • Can reduce manual acid dosing and chemical handling
  • Includes tubing and injection components for installation
  • Serviceable squeeze tube design
  • Suitable for compatible InverCHLOR Salt & Mineral Chlorinator models

Technical Information

Compatible System Madimack InverCHLOR Salt & Mineral Pool Chlorinator
Function Automated diluted acid dosing for pH control
Control Method Dosing amount is set using the InverCHLOR controller
Dosing Range Up to 9.9L per day. Adjustable in 10ml increments up to 999ml, then 100ml increments after that.
Acid Type Hydrochloric pool acid only. Do not use sulphuric acid.
Acid Dilution Minimum 3:1 water to acid dilution ratio. Always add acid to water, never water to acid.
Installation Style Wall-mounted dosing pump with suction and injection tubing
Maintenance Regularly inspect for leaks, check the acid container level, and maintain or replace the squeeze tube as required.

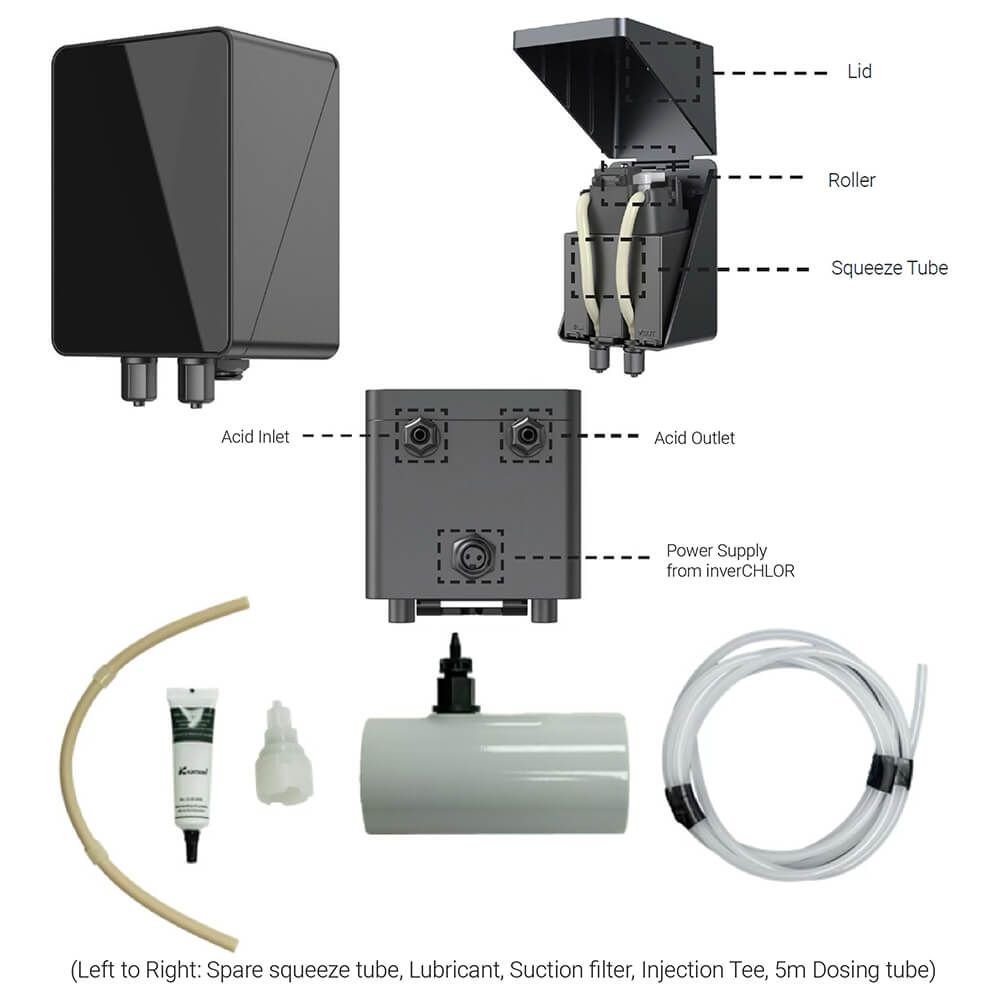

What Is Included

  • Madimack InverCHLOR pH Doser unit
  • Wall mounting bracket
  • Suction/dosing tubing
  • Suction filter
  • Injection tee / injection fitting
  • One-way valve component
  • Spare squeeze tube
  • Connection cable for InverCHLOR controller

Important Installation & Safety Notes

  • Only use the pH Doser with compatible Madimack InverCHLOR chlorinator systems.
  • Only use correctly diluted hydrochloric pool acid.
  • Minimum dilution ratio is 3:1 water to acid.
  • Always add acid to water when diluting. Never add water directly to acid.
  • Store acid in a well-ventilated area away from pool equipment to reduce corrosion risk from fumes.
  • Wear suitable PPE when handling pool acid, including gloves and eye protection.
  • Check tubing, fittings, and the acid container regularly for leaks or wear.
  • Installation should be completed according to the manufacturer’s instructions.

Product Details

Brand Madimack
Product InverCHLOR pH Doser
Product Type Automated Acid Dosing Upgrade
Compatible Range Madimack InverCHLOR Salt & Mineral Chlorinator systems

Please Note: This product is designed for compatible Madimack InverCHLOR systems. Please confirm compatibility with your existing chlorinator before purchasing.
