Davey Chloromatic Nipper 15g Chlorinator [DNP15C]
Davey Chloromatic Nipper 15g Chlorinator [DNP15C]
Davey Chloromatic Nipper 15g Chlorinator [DNP15C]
Roll over image to zoom in Click on image to zoom
Davey Chloromatic Nipper 15g Chlorinator [DNP15C]Davey Chloromatic Nipper 15g Chlorinator [DNP15C]Davey Chloromatic Nipper 15g Chlorinator [DNP15C]

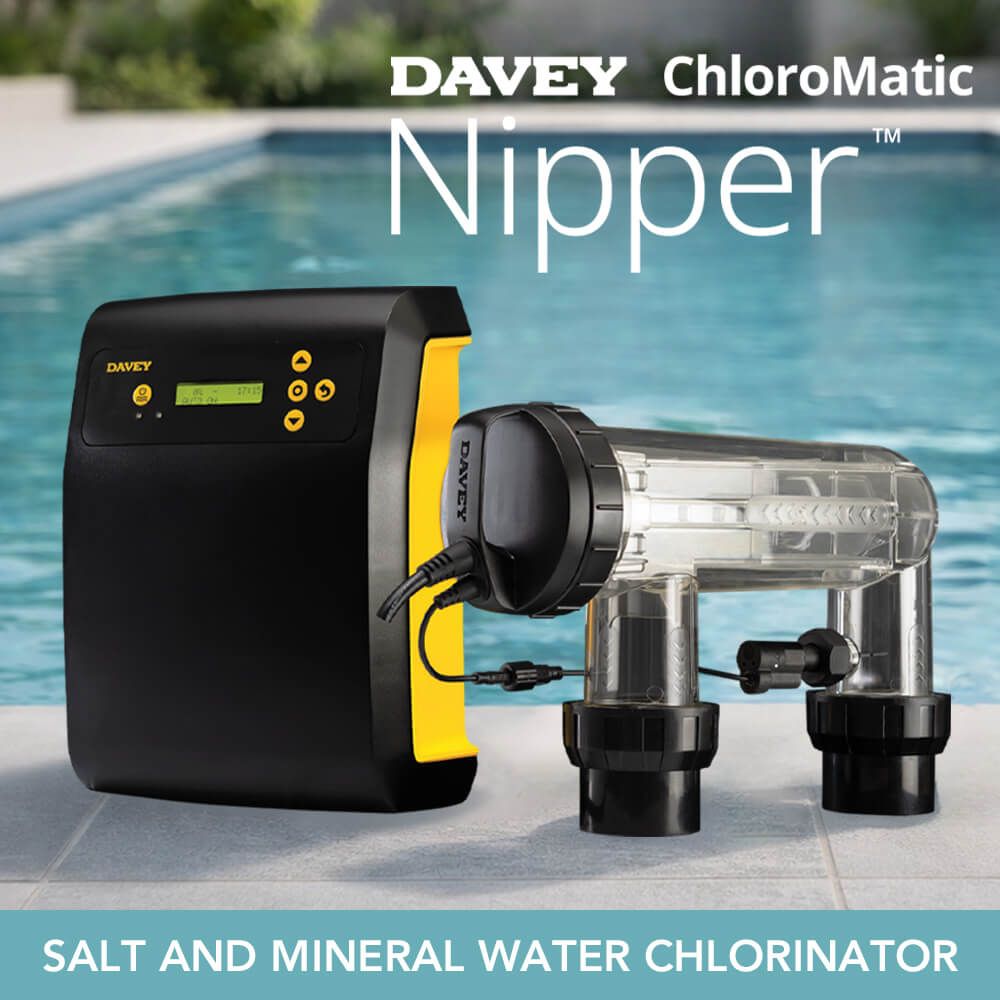

Davey Chloromatic DNP15C Nipper 15g Salt Water Chlorinator

Davey
Price:
$1,165.00


Please Note: Images shown are for illustration purposes only and may not be an exact representation of the product. Due to manufacturing tolerances there may be a slight variation to any listed measurements.

Description

The Davey ChloroMatic Nipper provides convenient automatic sanitisation for residential salt and mineral pools. Producing up to 15 grams of chlorine per hour, this complete system is designed for in-ground and above-ground pools up to 60,000 litres in cooler climates.

Simple digital controls, two independent timers and adjustable chlorine output make it easy to match chlorination to your pool’s operating schedule. Its reverse-polarity cell helps reduce calcium build-up, while integrated flow and salt monitoring help protect the system against unsuitable operating conditions.

Key Features

  • 15g/hr chlorine output for smaller residential pools.
  • Salt and mineral compatible with an operating salt range of 3,000–6,000ppm.
  • Reverse-polarity cell helps minimise calcium scale accumulation.
  • Adjustable output in 5% increments for precise chlorine control.
  • Two independent timers allow separate daily filtration schedules.
  • Digital LCD display provides clear operating and alarm information.
  • Add Salt, Low Salt and Low Flow alarms help safeguard the cell and system.
  • Integrated safety flow switch stops chlorine production when adequate water flow is not detected.
  • Battery backup protects programmed settings during power interruptions.
  • Energy-efficient switchmode power supply housed in a durable UV-stabilised enclosure.
  • 36-month manufacturer warranty for added peace of mind.

Pool Sizing Guide

Climate Maximum Recommended Pool Size
Cool climate Up to 60,000L
Hot or tropical climate Up to 36,000L

Intelligent Operating Modes

  • Boost Mode: Runs at maximum output for 24 hours following heavy swimming, contamination or extreme weather.
  • Cover Mode: Reduces chlorine production while the pool is covered to help prevent over-chlorination.
  • Spa Mode: Reduces output for smaller water volumes.
  • Winter Mode: Reduces cell output when chlorine demand is lower.

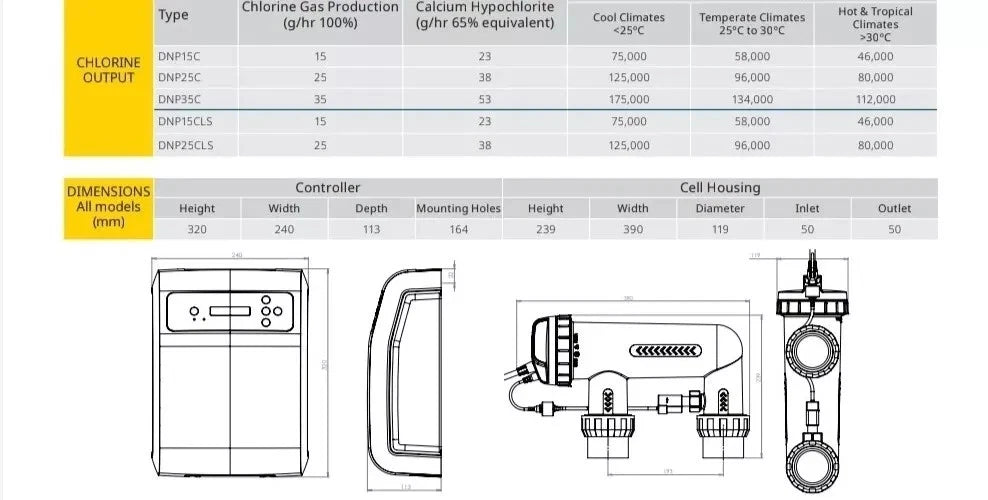

Technical Specifications

Model DNP15C
Chlorine Output 15g/hr
Chlorine Produced Over 8 Hours 120g
Operating Salt Range 3,000–6,000ppm
Cell Type Reverse-polarity electrolytic cell
Chlorine Adjustment 5% increments
Timers 2 independent timers
Maximum Power 0.12kW
Electrical Supply 220–240V, single phase, 50/60Hz
Enclosure Rating IP34

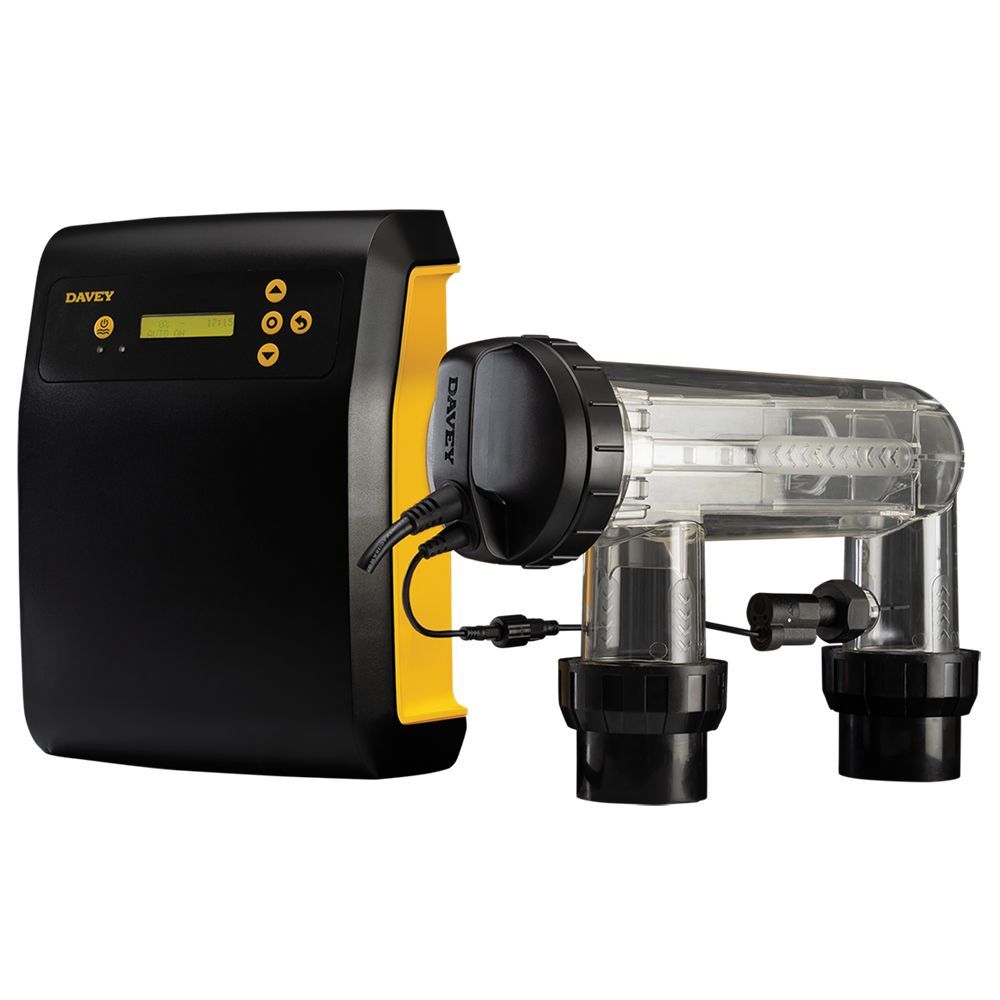

Complete System Includes

  • Digital controller and power supply with cell lead
  • U-shaped cell housing and reverse-polarity electrolytic cell
  • Integrated safety flow switch
  • Cell blanking cap and O-ring
  • Two barrel union assemblies and reducing bushes
  • Power lead, mounting hardware and quick reference guide

Pool sizing is a guide only. Actual requirements depend on climate, water temperature, pool use, sunlight, filtration runtime and water chemistry. Installation should be completed in accordance with Davey’s instructions and applicable electrical and plumbing requirements.
