Davey 40mm Multiport Valve [DMPV40]
Davey 40mm Multiport Valve [DMPV40]
Roll over image to zoom in Click on image to zoom
Davey 40mm Multiport Valve [DMPV40]Davey 40mm Multiport Valve [DMPV40]

Davey DMPV40 40mm Multiport Valve | Crystal Clear & EcoPure

Davey
Price:
$290.45


Please Note: Images shown are for illustration purposes only and may not be an exact representation of the product. Due to manufacturing tolerances there may be a slight variation to any listed measurements.

Description

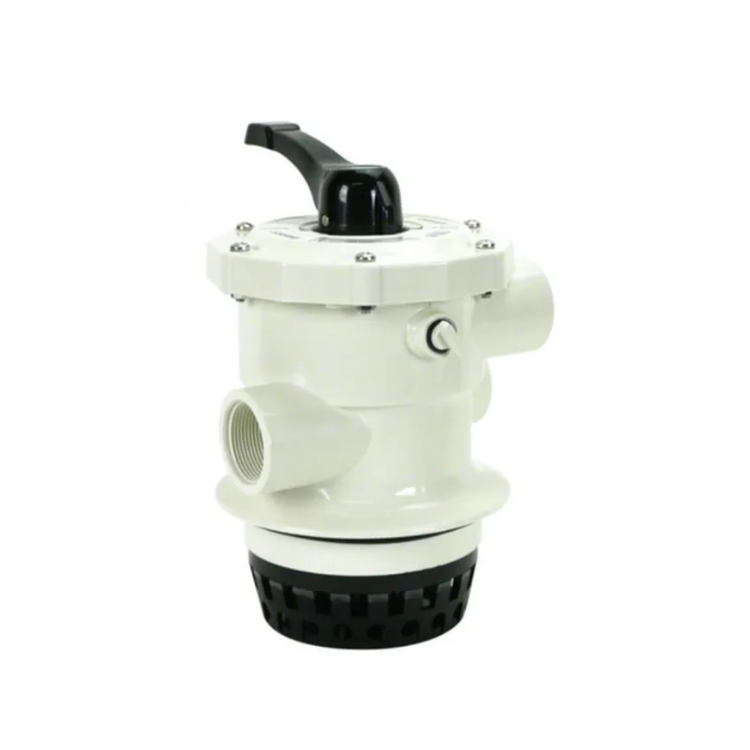

Genuine Davey 40mm top-mount multiport valve for selected current-model Crystal Clear and EcoPure sand filters. It replaces a leaking, stiff or damaged valve while retaining the filter’s normal operating positions.

Features and Benefits

  • Genuine Davey replacement assembly.
  • 40mm connections for current compatible filter plumbing.
  • Supplied with tank O-ring and three 40mm barrel unions for pump, pool return and backwash connections.
  • Includes a sight tube to help monitor backwash water clarity.

What’s Included

  • 40mm top-mount multiport valve
  • Tank O-ring
  • Three 40mm barrel unions
  • Sight tube / view tube

Specifications

Valve reference DMPV40 / Davey 401648
Connection size 40mm
Mounting Top mount
Compatible ranges Selected current Davey Crystal Clear and EcoPure filters

Compatibility

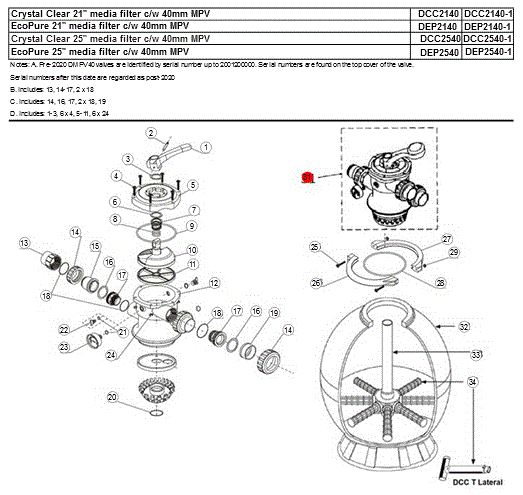

Commonly listed for current DCC2140 and DCC2540 Crystal Clear filters and selected later EcoPure models. Earlier filters can use a different valve or plumbing layout; confirm the filter model, manufacture period and connection arrangement before ordering.
