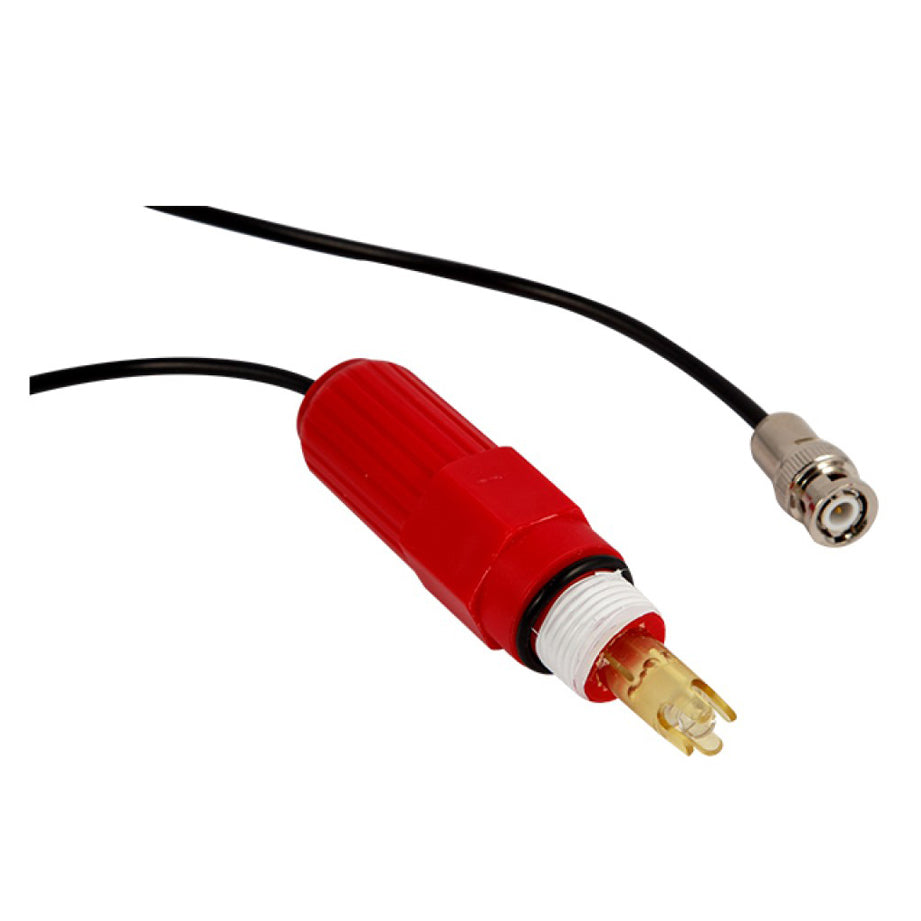

Bionizer pH Boss Probe

The pH BOSS Probe is the sensor that keeps your pool’s pH in check. It constantly measures the pH of your water and sends real-time readings to your pH BOSS controller, so acid is only added when it’s actually needed.

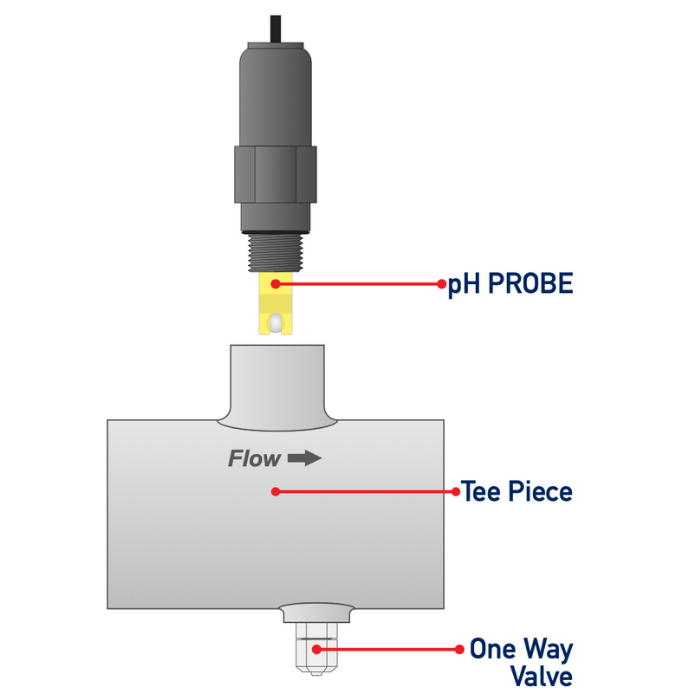

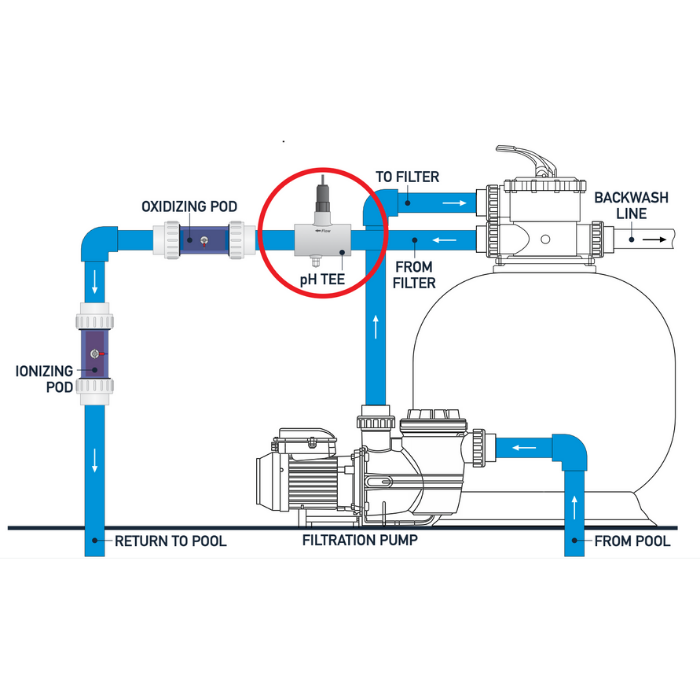

This probe installs directly into the pH BOSS tee on the return line, after the filter.

pH PROBE INSTALLATION:

1. Fit Teflon tape onto the thread of the pH Probe. Carefully remove the protective cap from the tip of the probe.
2. Screw the pH Probe into the Tee piece thread. Tighten firmly by hand. DO NOT OVER-TIGHTEN. DO NOT USE A TOOL.
3. After the pH Probe is installed in the Tee piece, connect plug on the pH Probe cable into the probe socket on the pH BOSS. Push the plug into place and 1/4 turn clockwise to lock it into place. See the BNC pH Probe socket diagram, Page 4 of your pH BOSS Handbook
   AFTER ALL HOSE FITTINGS ARE COMPLETED, AND THE PROBE IS FITTED, TEST THE SYSTEM WITH FRESH WATER, USING THE MANUAL DOSE FUNCTION (PAGE 12). CHECK CAREFULLY FOR ANY LEAKS AND CORRECT AS NEEDED.

Features and Benefits:

• Designed specifically for the Bionizer pH BOSS system
• Provides continuous, accurate pH readings
• Supports automatic, low-dose acid control
• Inline or buffer calibration options
• Simple plug-in connection with quarter-turn lock
• Essential for stable, healthy pool water

Includes

1x Replacement pH Monitoring Probe
