Description

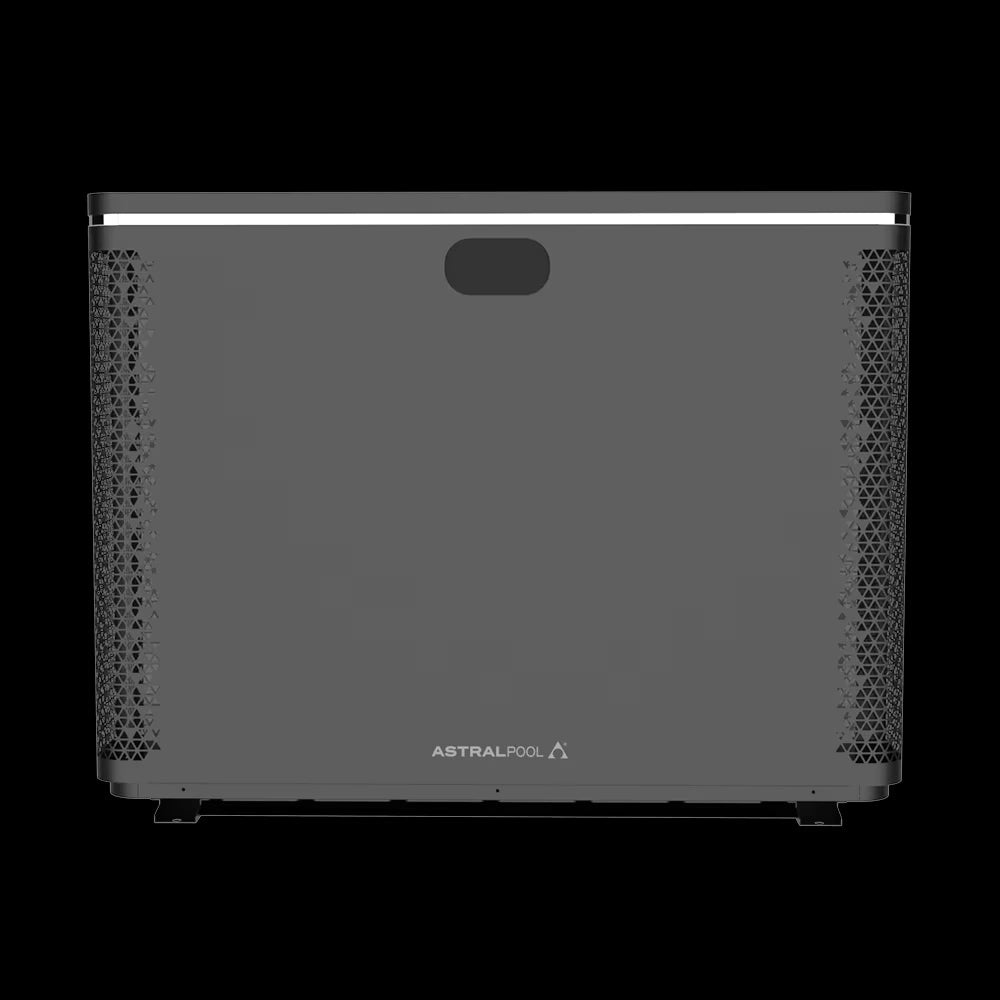

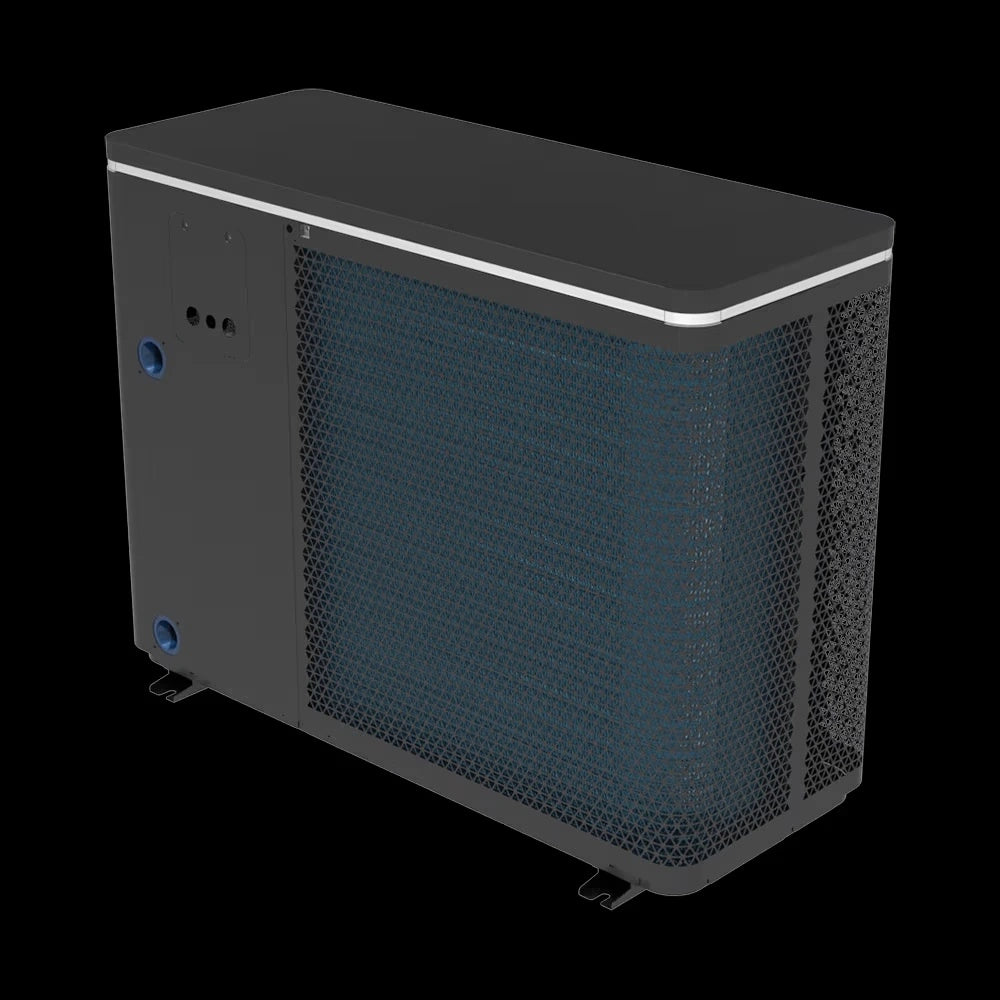

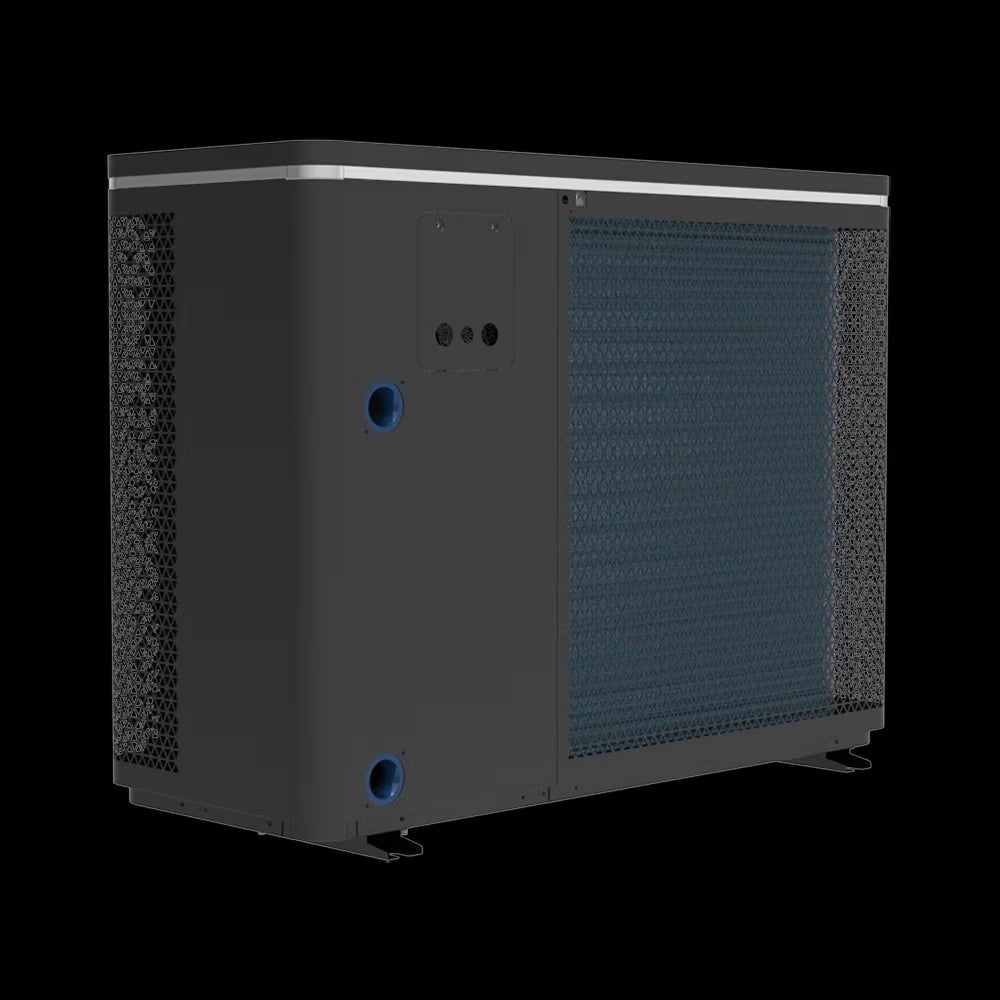

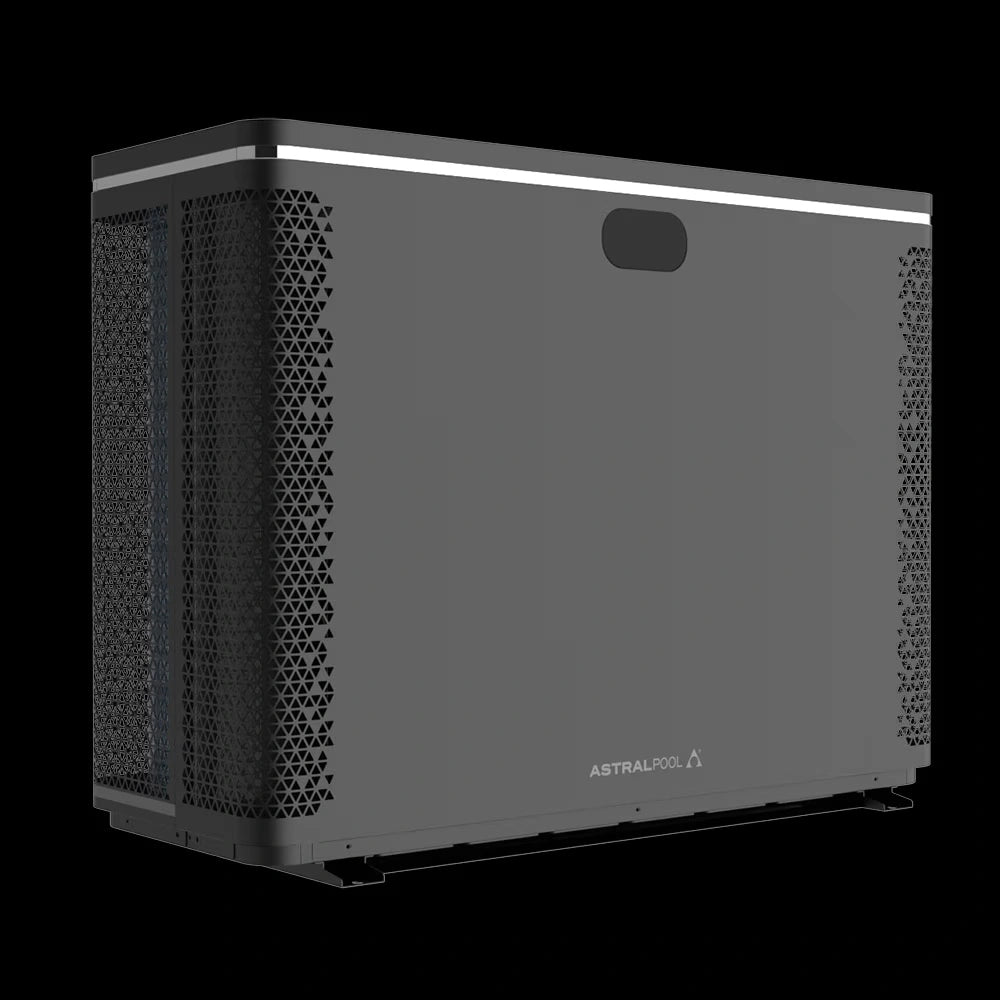

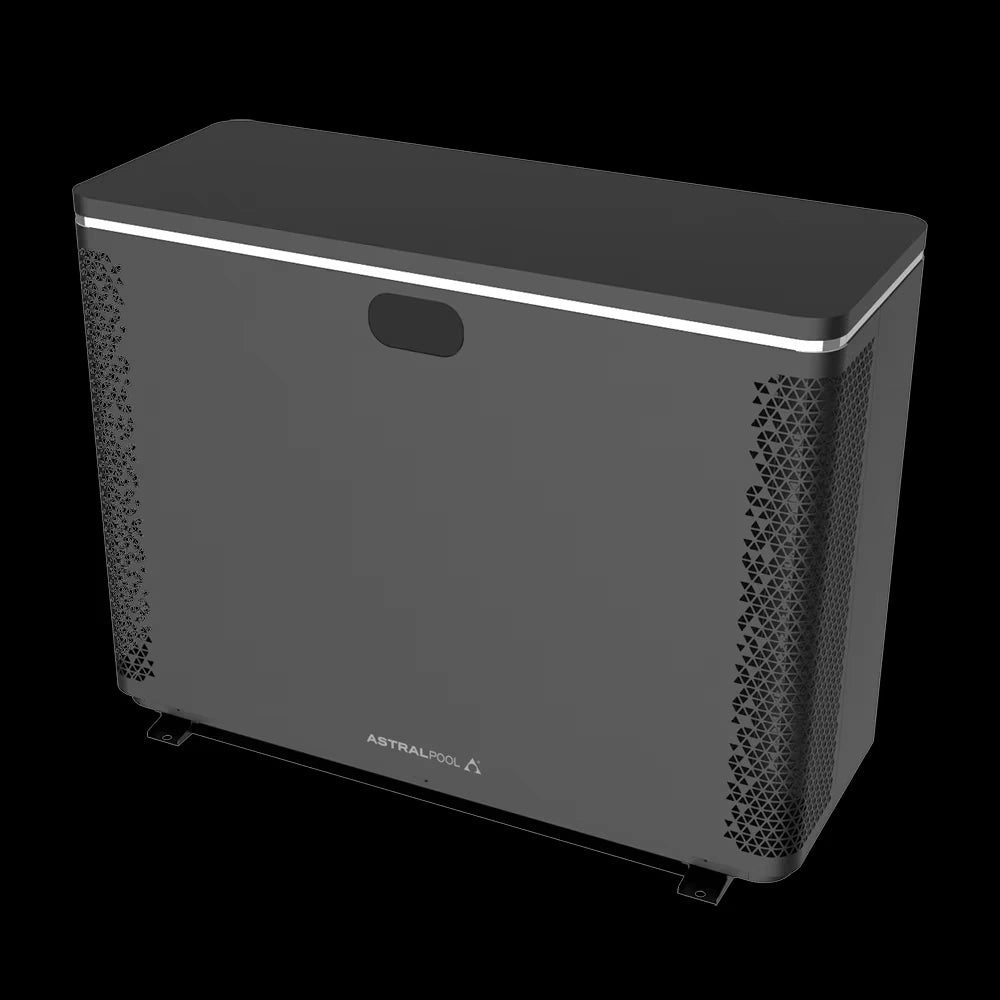

The AstralPool Pinnacle Inverter Heat Pump is the ultimate choice for pool owners seeking superior heating performance and energy savings. Designed to operate efficiently in outdoor temperatures as low as -15°C, it ensures year-round comfort without compromise.
- Premium efficiency
- Superior energy savings
- Whisper quiet operation
- Designed for Australian conditions
- Plug and play connectivity
Specifications
Air 27°C / Water 26°C / Humidity 80% - Heating Capacity (kW): 2.65–10.7
Air 27°C / Water 26°C / Humidity 80% - Heating Power Input (kW): 0.12–1.67
Air 27°C / Water 26°C / Humidity 80% - COP: 22.3–6.41
Air 15°C / Water 26°C / Humidity 70% - Heating Capacity (kW): 1.9–7.6
Air 15°C / Water 26°C / Humidity 70% - Heating Power Input (kW): 0.30–1.40
Air 15°C / Water 26°C / Humidity 70% - COP: 13.66–5.41
Air 35°C / Water 29°C / Humidity 70% - EER: 3.42
Air 35°C / Water 29°C / Humidity 70% - Cooling Capacity (kW): 4.41
Operating Air Temperature: -15°C to 43°C
Refrigerant Fluid: R32
Power Supply: 220-240 V / 1 phase / 50 Hz
Compressor Type: Rotary
Compressor Brand: Panasonic
Fan Direction: Side Discharge
Acoustic Pressure at 10 m, Maximum–Minimum (dB(A)): 33-23
Hydraulic Connections (mm): 40
Recommended Water Flow (L/min): 72
Product Dimensions (L x W x H) (mm): 1061 x 467 x 787
Weight (kg): 82
