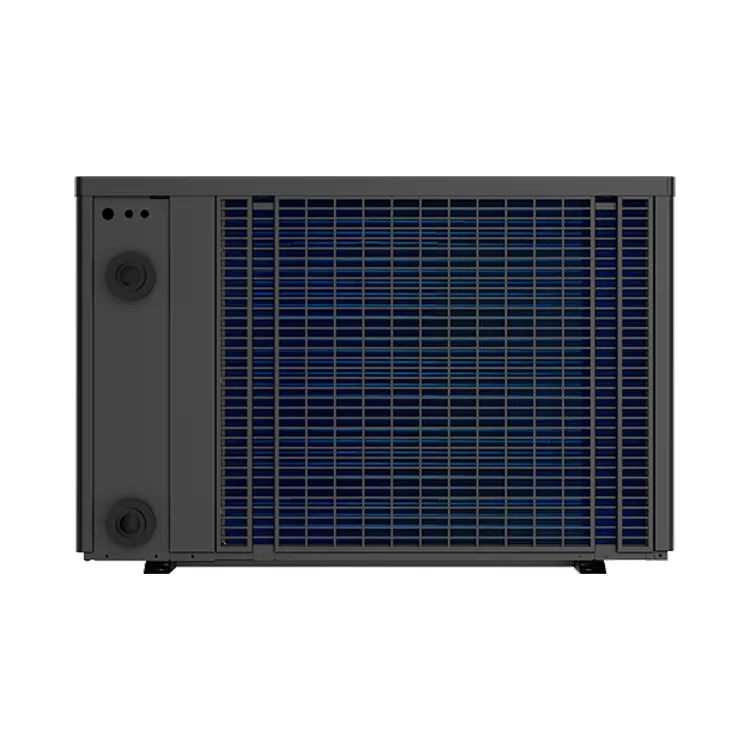

23kw Madimack Elite V4 Heat Pump [PHV4AU230]
23kw Madimack Elite V4 Heat Pump [PHV4AU230]
23kw Madimack Elite V4 Heat Pump [PHV4AU230]
23kw Madimack Elite V4 Heat Pump [PHV4AU230]
23kw Madimack Elite V4 Heat Pump [PHV4AU230]
Roll over image to zoom in Click on image to zoom
23kw Madimack Elite V4 Heat Pump [PHV4AU230]23kw Madimack Elite V4 Heat Pump [PHV4AU230]23kw Madimack Elite V4 Heat Pump [PHV4AU230]23kw Madimack Elite V4 Heat Pump [PHV4AU230]23kw Madimack Elite V4 Heat Pump [PHV4AU230]

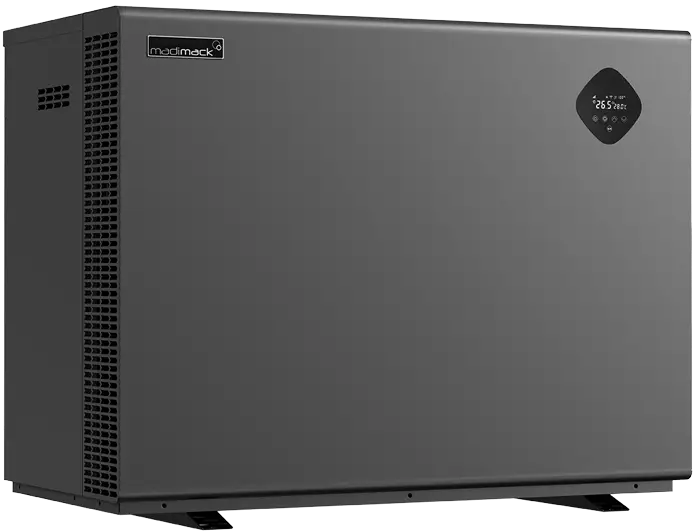

Madimack InverELITE V4 23kW Quietest Pool Heat Pump w/ Wifi

Madimack
Price:
$11,950.00


Please Note: Images shown are for illustration purposes only and may not be an exact representation of the product. Due to manufacturing tolerances there may be a slight variation to any listed measurements.

Description

Designed for customers who want efficient heating, quiet operation and reliable year-round pool temperature control, the Madimack Elite V4 range covers everything from smaller residential pools through to larger, high-demand installations. With models available from 10kW through to 41kW, the range allows the correct unit to be selected based on pool size, location, desired temperature, cover use and swimming season.

The Elite V4 uses inverter technology to vary output instead of simply switching fully on or off. This helps the heat pump maintain temperature more efficiently, reduce unnecessary power draw and operate more quietly once the pool is up to temperature. It is suitable for both heating and cooling, making it a strong option for customers wanting better control over pool comfort across changing weather conditions.

Important sizing note: Heat pump sizing is not based on pool volume alone. The right model depends on your pool volume, location, pool cover use, wind exposure, shade, desired water temperature, existing equipment, running hours and the months of the year you want to swim. For high-value heat pump purchases, we recommend confirming sizing before installation.
High efficiency inverter design COP ratings up to 22.0 under stated test conditions, helping reduce running costs compared with lower-efficiency heating options.
Quiet backyard operation Triple-layered sound insulation and inverter speed control help keep operating noise low, especially once the pool is maintaining temperature.
Heating and cooling The range supports pool heating and cooling, with a temperature set point range from 5°C to 40°C.
Wi-Fi control Built-in Wi-Fi/app control allows convenient temperature adjustment and scheduling from your smart device.
Quality components Features include a twin-rotary Mitsubishi DC compressor, commercial-grade centrifugal fan and aluminium-alloy casing.
Strong warranty coverage Manufacturer warranty listed as 7 years on all parts, 15 years on compressor and 25 years on heat exchanger.

Capacity comparison

The chart below compares rated heating capacity at the standard high-performance test condition of air 27°C / water 27°C / humidity 80%.

10kW

9.8kW
12kW

11.8kW
14kW

14.2kW
17kW

17.0kW
19kW

19.0kW
23kW

23.0kW
27kW

27.0kW
33kW

33.0kW
41kW

40.8kW

Key benefits

Efficient temperature control

The inverter-driven system is designed to adjust output depending on demand. When the pool needs fast heating, the unit can operate at higher capacity. Once the target temperature is reached, it can reduce output to maintain the water temperature more efficiently.

Quiet performance for residential backyards

The Elite V4 range is built with triple-layered sound insulation and a centrifugal fan design to help reduce operating noise. This makes it a strong choice where the heat pump may be installed near entertaining areas, neighbouring properties or common outdoor spaces.

3-directional airflow design

Madimack’s 3D airflow design is engineered to improve airflow management and reduce installation limitations compared with more basic heat pump designs. This can be especially useful where space around the equipment area is limited.

Built for Australian outdoor conditions

The aluminium-alloy casing, R32 refrigerant, titanium heat exchanger design and weather-resistant construction make the range suitable for demanding pool environments when installed correctly.

Smart operation and scheduling

Wi-Fi/app control and built-in timers allow customers to manage operation without needing to manually adjust the unit at the equipment pad. This is useful for setting heating schedules, adjusting temperature and optimising run time.

Choosing the right size

As a general guide, smaller models such as the 10kW, 12kW and 14kW units are best suited to smaller or well-covered pools where the desired temperature rise is moderate. The 17kW, 19kW and 23kW models suit many medium residential pools. Larger 27kW, 33kW and 41kW models are intended for larger pools, colder locations, higher target temperatures or customers wanting stronger heat-up performance.

Pool covers make a major difference to heat retention and running cost. An uncovered outdoor pool will lose far more heat overnight and in windy conditions, which can require a larger unit and longer run times.

Installation and electrical notes

  • 10kW, 12kW and 14kW models are listed with a 10A plug connection.
  • 17kW, 19kW, 23kW, 27kW and 33kW models are hardwired single-phase units.
  • The 41kW model is hardwired and listed as 400V three-phase.
  • All models use 40mm water connections.
  • Correct water flow, clearances and electrical supply must be confirmed before installation.
  • Installation should be completed by suitably licensed trades where required.

Specifications

Specification 10kW 12kW 14kW 17kW 19kW 23kW 27kW 33kW 41kW
Model V4-100 V4-120 V4-140 V4-170 V4-190 V4-230 V4-270 V4-330 V4-410
Madimack code HPELV4AU100 HPELV4AU120 HPELV4AU140 HPELV4AU170 HPELV4AU190 HPELV4AU230 HPELV4AU270 HPELV4AU330 HPELV4AU410
Heating capacity at 27°C air / 27°C water / 80% humidity 9.8kW 11.8kW 14.2kW 17.0kW 19.0kW 23.0kW 27.0kW 33.0kW 40.8kW
COP at 27°C air / 27°C water / 80% humidity 19.5–7.0 19.7–7.2 20.2–7.2 20.4–7.2 20.0–7.0 22.0–7.3 21.0–7.2 20.3–7.1 18.9–7.0
Heating capacity at 15°C air / 26°C water / 70% humidity 6.8kW 8.1kW 9.6kW 11.5kW 13.0kW 15.0kW 18.5kW 22.7kW 29.0kW
COP at 15°C air / 26°C water / 70% humidity 7.6–5.1 8.1–5.2 8.5–5.1 9.0–5.3 7.9–5.0 9.6–5.6 8.9–5.2 8.0–5.2 7.8–5.0
Cooling capacity at 35°C air / 28°C water / 80% humidity 4.8kW 5.5kW 6.7kW 9.4kW 10.8kW 11.9kW 13.5kW 15.4kW 20.0kW
Temperature set point 5–40°C 5–40°C 5–40°C 5–40°C 5–40°C 5–40°C 5–40°C 5–40°C 5–40°C
Operating air temperature -20–43°C -20–43°C -20–43°C -20–43°C -20–43°C -20–43°C -20–43°C -20–43°C -20–43°C
Casing Aluminium-alloy Aluminium-alloy Aluminium-alloy Aluminium-alloy Aluminium-alloy Aluminium-alloy Aluminium-alloy Aluminium-alloy Aluminium-alloy
Compressor Twin-rotary Mitsubishi DC compressor Twin-rotary Mitsubishi DC compressor Twin-rotary Mitsubishi DC compressor Twin-rotary Mitsubishi DC compressor Twin-rotary Mitsubishi DC compressor Twin-rotary Mitsubishi DC compressor Twin-rotary Mitsubishi DC compressor Twin-rotary Mitsubishi DC compressor Twin-rotary Mitsubishi DC compressor
Power supply 230V / 1Ph 230V / 1Ph 230V / 1Ph 230V / 1Ph 230V / 1Ph 230V / 1Ph 230V / 1Ph 230V / 1Ph 400V / 3Ph
Electrical connection 10A plug 10A plug 10A plug Hardwired Hardwired Hardwired Hardwired Hardwired Hardwired
Rated input power 0.16–1.33kW 0.19–1.56kW 0.23–1.88kW 0.26–2.17kW 0.31–2.60kW 0.32–2.68kW 0.43–3.56kW 0.52–4.37kW 0.70–5.80kW
Rated input current 0.70–5.78A 0.83–6.78A 1.00–8.17A 1.13–9.43A 1.35–11.30A 1.39–11.65A 1.87–15.48A 2.26–19.00A 1.01–8.41A
Maximum input current 9.0A 10.0A 10.0A 16.0A 16.5A 18.5A 20.5A 24.0A 12.5A
Sound level at 1m 36.0–41.8dB(A) 36.0–42.5dB(A) 36.3–43.9dB(A) 37.2–45.5dB(A) 37.5–46.0dB(A) 37.6–46.8dB(A) 37.9–48.2dB(A) 38.2–48.7dB(A) 38.8–49.3dB(A)
Sound level at 10m 16.0–21.8dB(A) 16.0–22.5dB(A) 16.3–23.9dB(A) 17.3–25.5dB(A) 17.5–26.0dB(A) 17.6–26.8dB(A) 17.9–28.2dB(A) 18.2–28.7dB(A) 18.8–29.3dB(A)
Advised water flow 50L/min ±20% 65L/min ±20% 70L/min ±20% 85L/min ±20% 100L/min ±20% 135L/min ±20% 140L/min ±20% 180L/min ±20% 220L/min ±20%
Water pressure drop 4kPa 4kPa 5kPa 6kPa 7kPa 8kPa 12kPa 16kPa 22kPa
Gas R32 R32 R32 R32 R32 R32 R32 R32 R32
Water connection 40mm 40mm 40mm 40mm 40mm 40mm 40mm 40mm 40mm
Net weight 83kg 83kg 83kg 90kg 94kg 100kg 125kg 154kg 186kg
Gross weight 92kg 92kg 92kg 100kg 104kg 112kg 148kg 181kg 216kg
Net dimensions L x W x H 936 x 494 x 655mm 936 x 494 x 655mm 936 x 494 x 655mm 1036 x 494 x 655mm 1036 x 494 x 655mm 1104 x 494 x 757mm 1129 x 504 x 945mm 1310 x 514 x 945mm 1405 x 514 x 1070mm
Packaging dimensions L x W x H 1005 x 550 x 685mm 1005 x 550 x 685mm 1005 x 550 x 685mm 1105 x 550 x 685mm 1105 x 550 x 685mm 1175 x 550 x 785mm 1198 x 560 x 985mm 1380 x 560 x 985mm 1475 x 560 x 1105mm

Warranty

  • 7 year all parts warranty
  • 15 year compressor warranty
  • 25 year heat exchanger warranty

Warranty terms, registration requirements and exclusions are determined by the manufacturer. Always refer to the current Madimack warranty documentation for full details.

Specification notes

Performance figures are based on stated test conditions. Actual performance will vary depending on pool volume, cover use, installation location, ambient air temperature, water temperature, wind exposure, plumbing setup and operating schedule. Manufacturer data is provided for reference; the unit nameplate and current Madimack documentation should be treated as the final source for installation and electrical requirements. Acoustic data is tested under controlled conditions and may differ on site.
